Ajax ReX 2 Range Extender
Ajax ReX 2 Range Extender
Couldn't load pickup availability
Ajax ReX 2 Range Extender

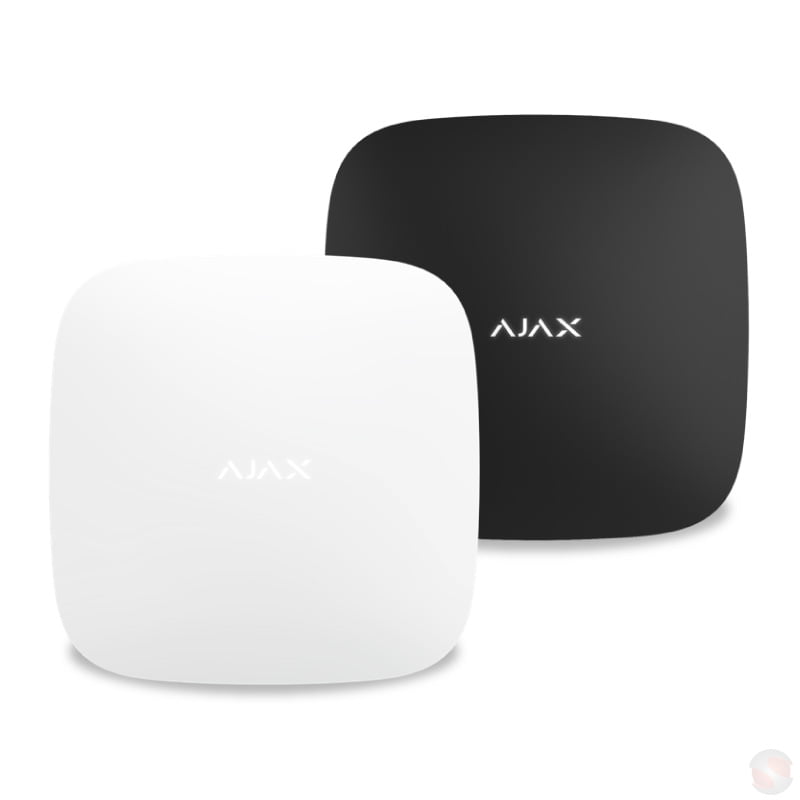

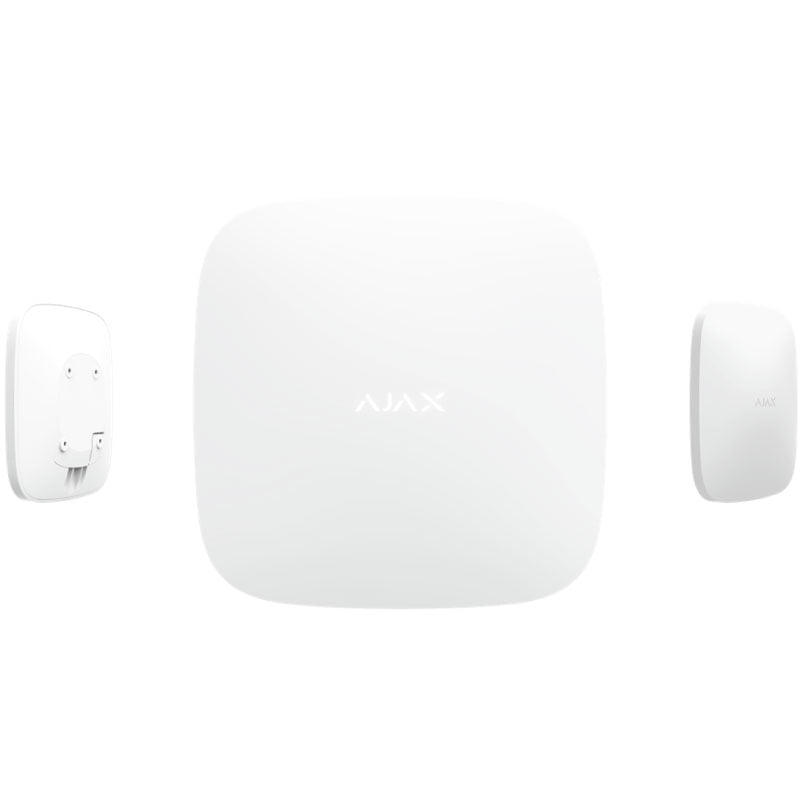

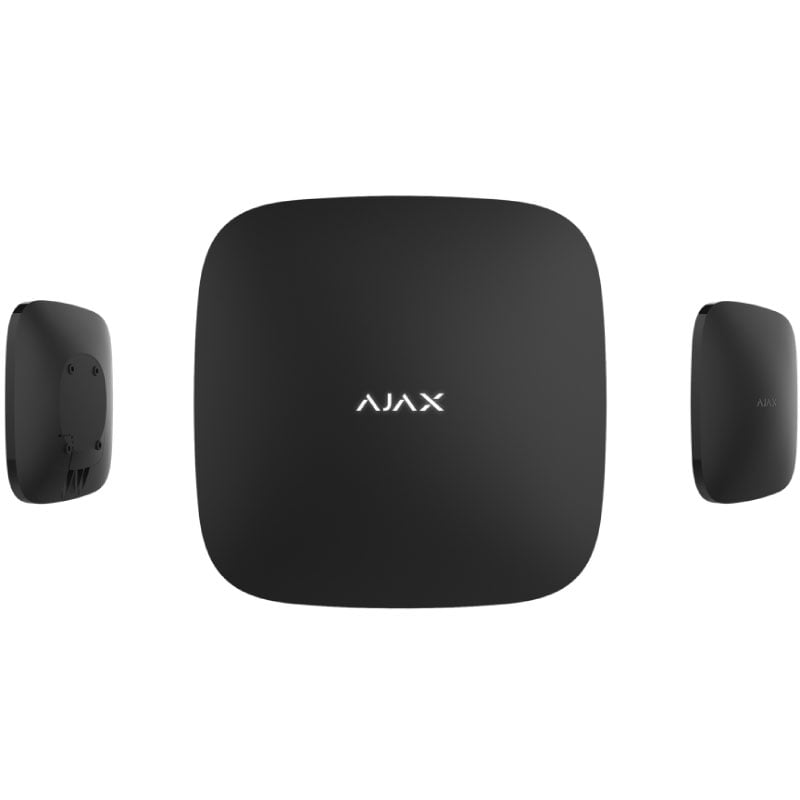

Ajax Rex 2 is a radio signal range extender that increases the range wireless range between the Ajax Hubs and connected wireless devices.
The intelligent radio signal range extender enables users to place Ajax devices at a considerable distance from the hub for protecting multi-story offices, detached buildings, and even production plants. Connecting 5 ReXs to the security system extends its coverage to up to 35 km² (in open areas / line of sight)
Rex 2 works with Hub 2 (2G), Hub 2 (4G) and Hub 2 Plus control panels and is MotionCam and MotionCam Outdoor compatible.
Ajax ReX 2 Range Extender including Wings technology
For Hub 2 and Hub 2 Plus control panels – MotionCam Compatible
More applications of a security system
Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices. By connecting all or part of the devices to ReX 2, you will ensure the security and automation of a business centre, estate, warehouse complex, or a large production facility.
Number of Ajax ReX Range Extenders per Hub:
-
- Hub (1) = Not compatible
- Hub Plus (1) = Not Compatible
- Hub 2 (2G) = 5x ReX
- Hub 2 (4G) = 5x ReX
- Hub 2 Plus = 5x ReX
*Ajax Rex can only be added to an Ajax Hub and not to another Rex
Verification of alarms with snapshots
Events and alarms are transmitted instantly and the first photo verification snapshot is delivered in just 13 seconds when transmitting images from MotionCam Outdoor (default settings) through ReX 2 range extender and the hub. The hub should be connected to the internet via Ethernet, Wi-Fi or LTE.
Delivery time with other resolution settings is available, see link Photo Speed.
ReX 2 over Ethernet – Radio communication through steel and concrete
If Ajax Rex 2 is out of wireless range of the Hub, connect it via Ethernet. The next major OS Malevich update allows covering office centres with underground parking lots, sectional metal hangars, and warehouse complexes of several large buildings with a single Ajax system. Once the operating system is updated, ReX 2 will be able to connect to a hub both via radio communication and via Ethernet using the wire as a single or second communication channel.
Enhanced security system
ReX 2 works as an extra intelligent control panel: it connects devices into an autonomous group and takes over control at the right time. Thanks to automatic adjustment of signal strength and frame synchronization, any number of system devices can be connected to ReX 2 — the reliability of communication will not be affected by this. If, for some reason, radio communication with the hub is interrupted, ReX 2 will receive an alarm from a sensor and activate a siren to draw attention to the incident and deter the burglar.
