HUAWEI 15kW Intelligent Power Mate iSitePower-M Energy Storage Module
Model IPM-MAB05B1

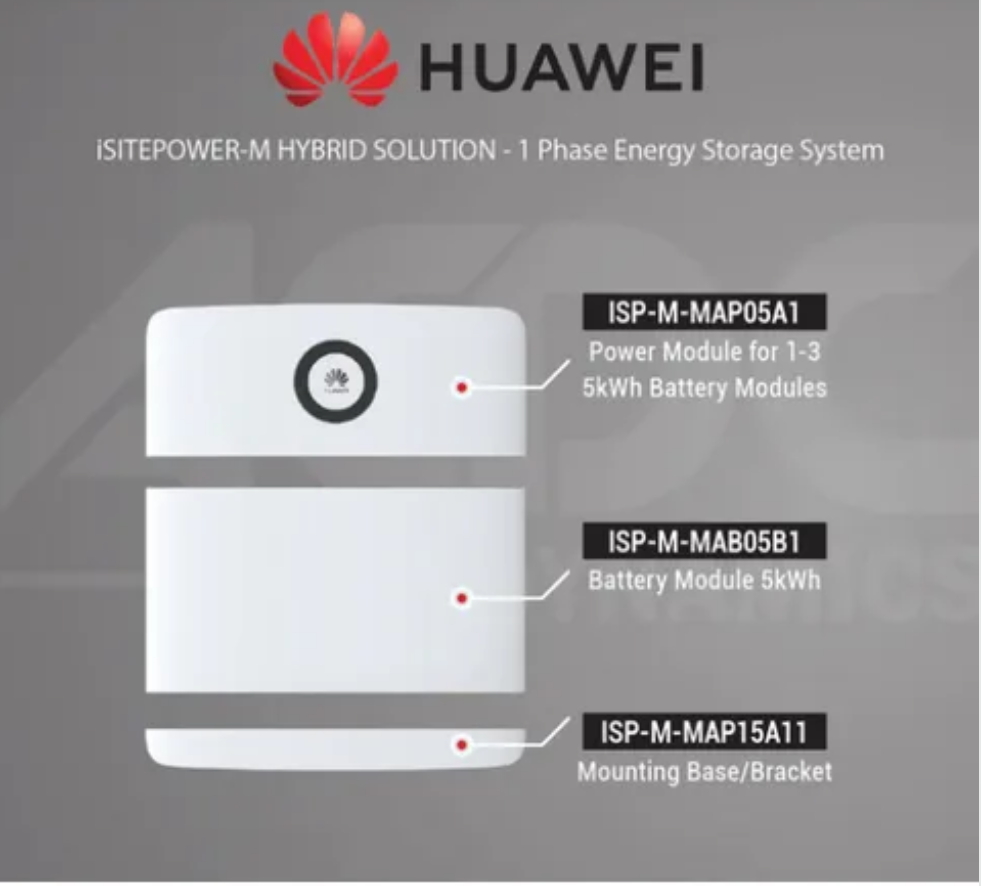

Includes Only: HUAWEI 5kW Intelligent Power Mate iSitePower-M Energy Storage Module (IPM-MAB05B1)
For Use With HUAWEI 5kW Intelligent Power Mate iSitePower-M (Purchased Separately)
Used to Increase Huawei IPM-5K-5Kwh capacity by 5kW per Module (up to 15kW)
Recommended Packages:
5kW System (Small Shop): Aircons, Cashiers, Fans, Microwave Ovens.

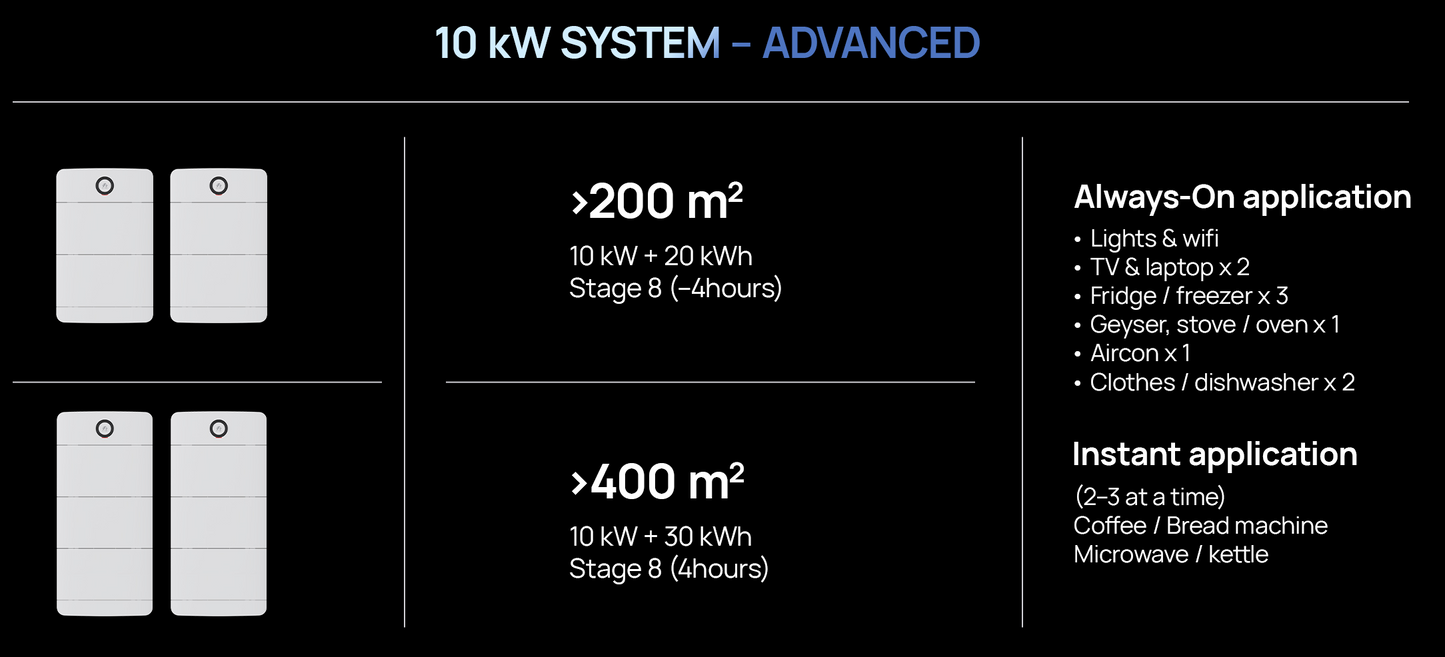

10kW System (House): Aircons, TVs, Electric Fans, Refrigerators.

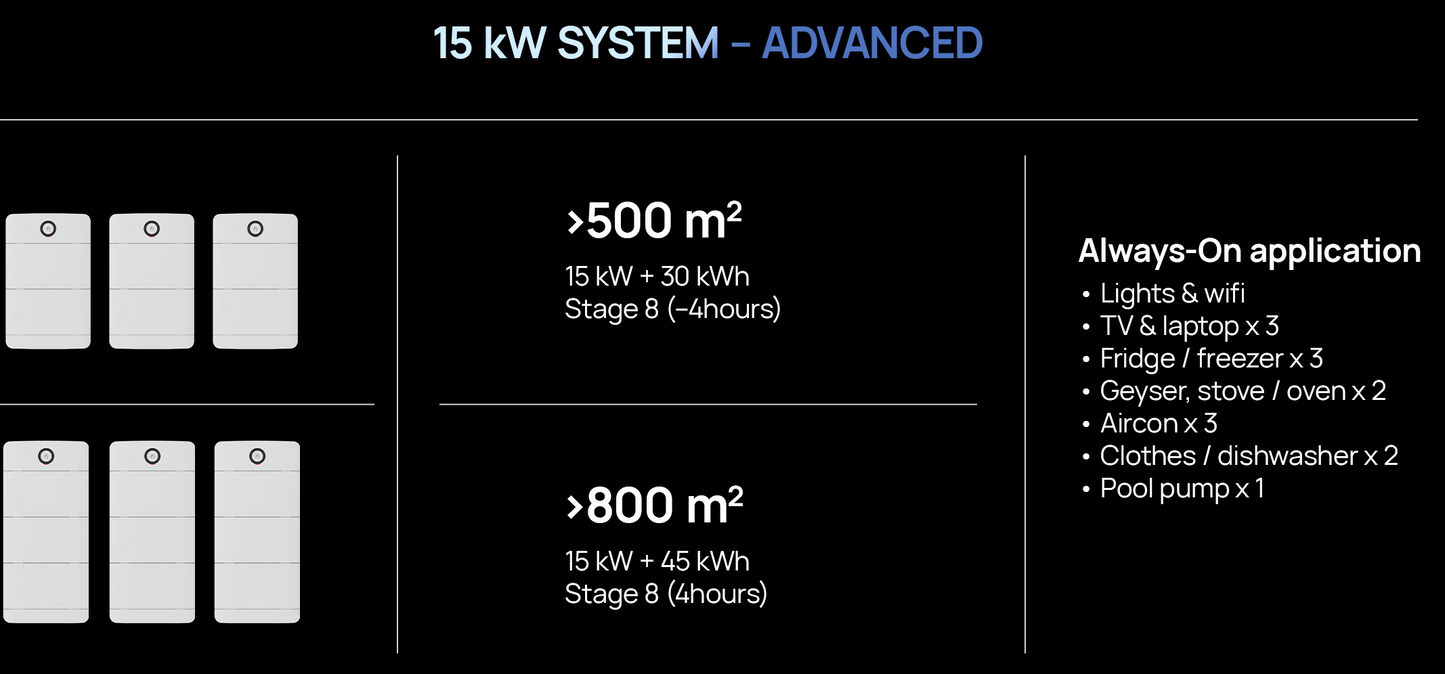

15kW System (Office): Aircons, Computers, Printers, Projectors.
Weight: 50Kg
Refer To Brochure For Detailed Product Specifications.
10 Year Limited Product Warranty or 6000 Cycles.
Ultra-fast: 2-hour fast charge 100%
Ultra-quiet: Fanless design, operating noise less than 29 dB Energy switchover without perception<10ms Smart priority management (Solar /battery /grid /DG) Smart mobile
APP management: monitor device running status in real-time, help EPC & client efficiently manage the device. D.G. scheduling is supported, D.G. does not need to be started manually.
Built-in energy optimizer, supporting mixed use of old and new lithium batteries
Indoor scenario, floor-mounted
Off-grid and unreliable grid areas, civil and commercial backup power
AC mode – Single-phase/dual-wire: 85 – 290 Vac
Input Power – Single-phase/dual-wire, 42A
Input voltage – 58-150 V DC
Input power – 8kW max
Output voltage – Single-phase 200–230 Vac
Battery capacity – 4.8kWh per battery
Charging Power – 4.8kW max.
Maximum parallel capacity – A maximum of three battery modules can be connected in parallel, 14.4 kWh.
