Rectron

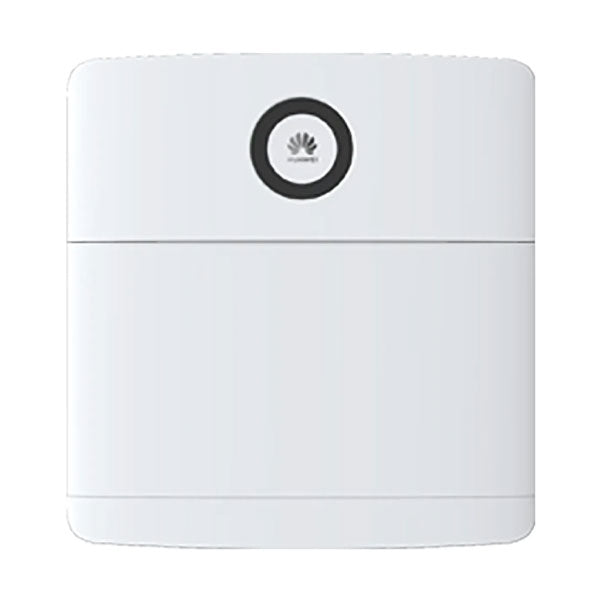

Huawei Power M - 5kW

Huawei Power M - 5kW

Regular price R 71,999.00 ZAR
Regular price R 79,999.00 ZAR Sale price R 71,999.00 ZAR
Sale Sold out
PRICE EXCLUDES INSTALLATION AND DELIVERY

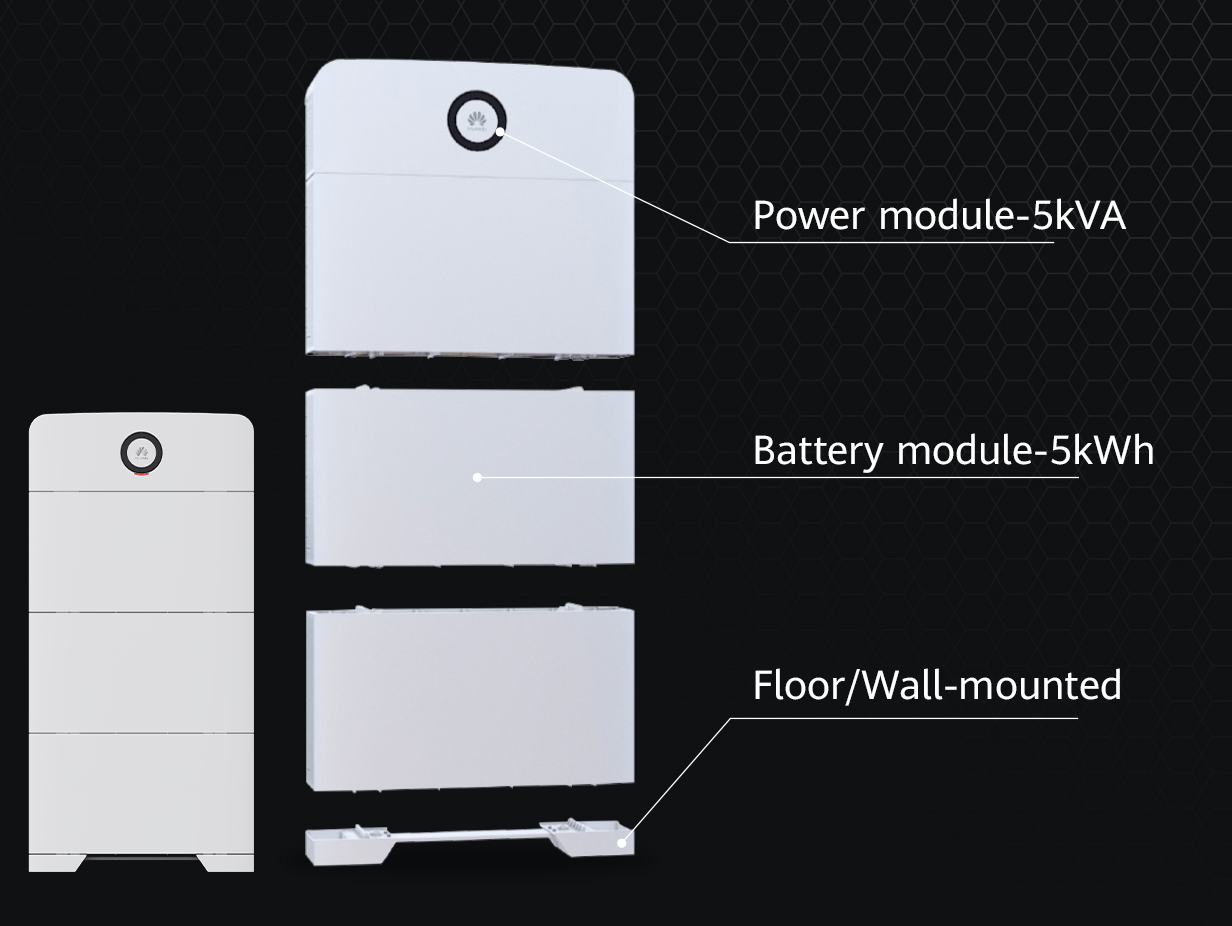

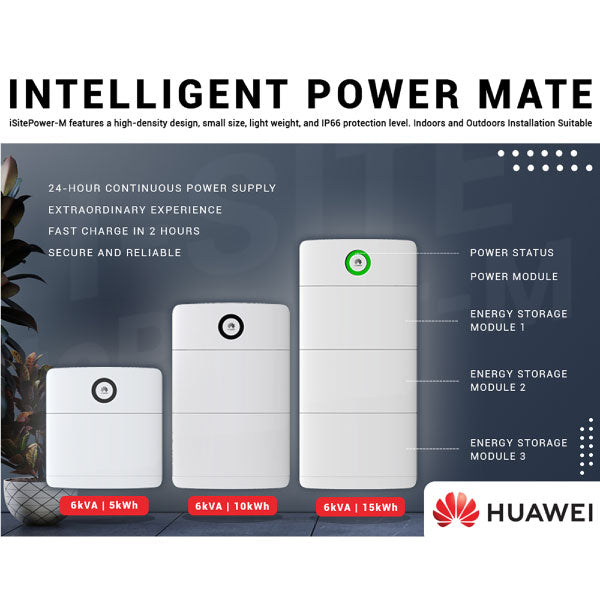

  • HUAWEI 15kW Intelligent Power Mate iSitePower-M Energy Storage Module

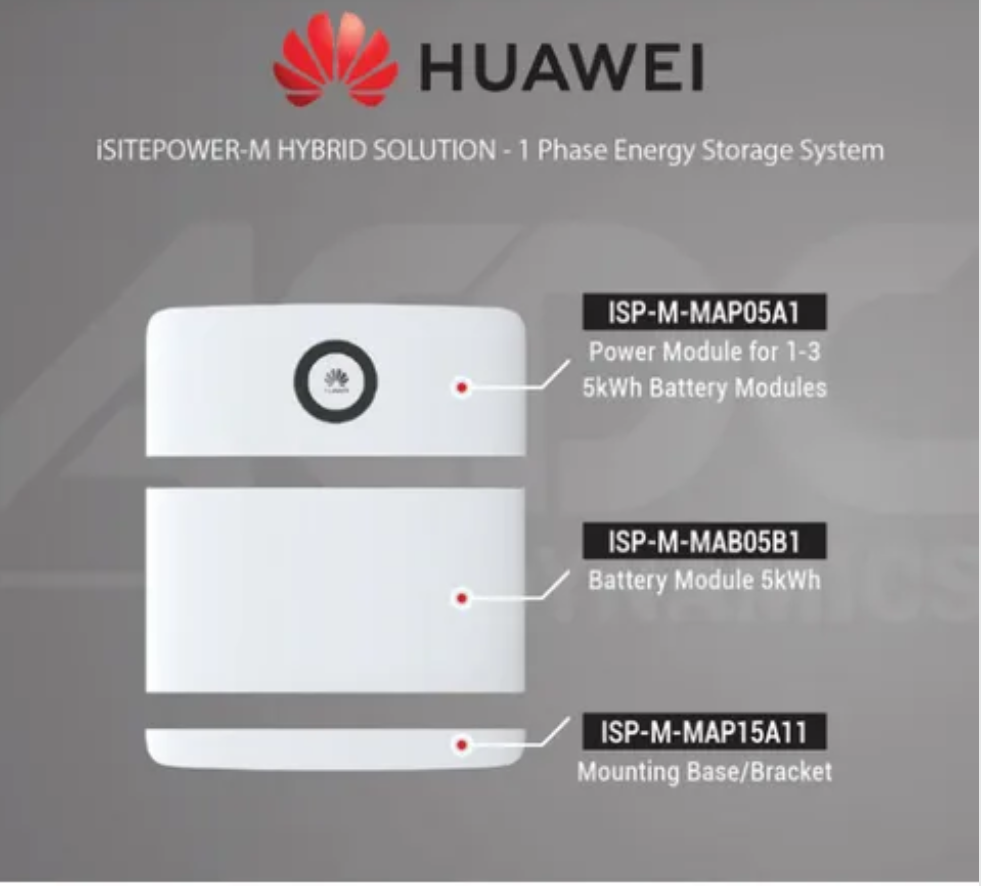

  • Model IPM-MAB05B1
  • Includes Only: HUAWEI 5kW Intelligent Power Mate iSitePower-M Energy Storage Module (IPM-MAB05B1)
  • For Use With HUAWEI 5kW Intelligent Power Mate iSitePower-M (Purchased Separately)
  • Used to Increase Huawei IPM-5K-5Kwh capacity by 5kW per Module (up to 15kW)
  • Recommended Packages:

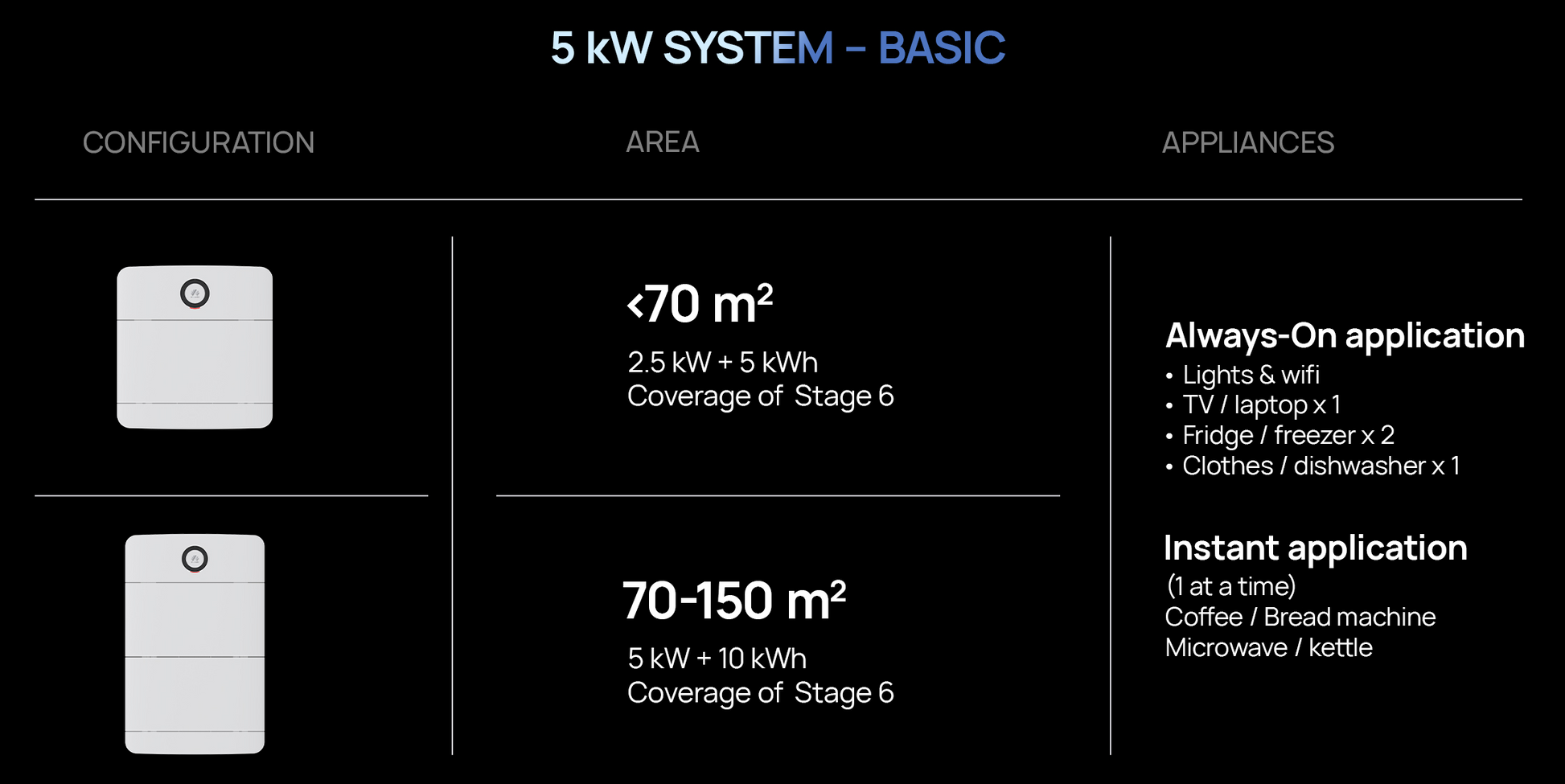

    • 5kW System (Small Shop): Aircons, Cashiers, Fans, Microwave Ovens.

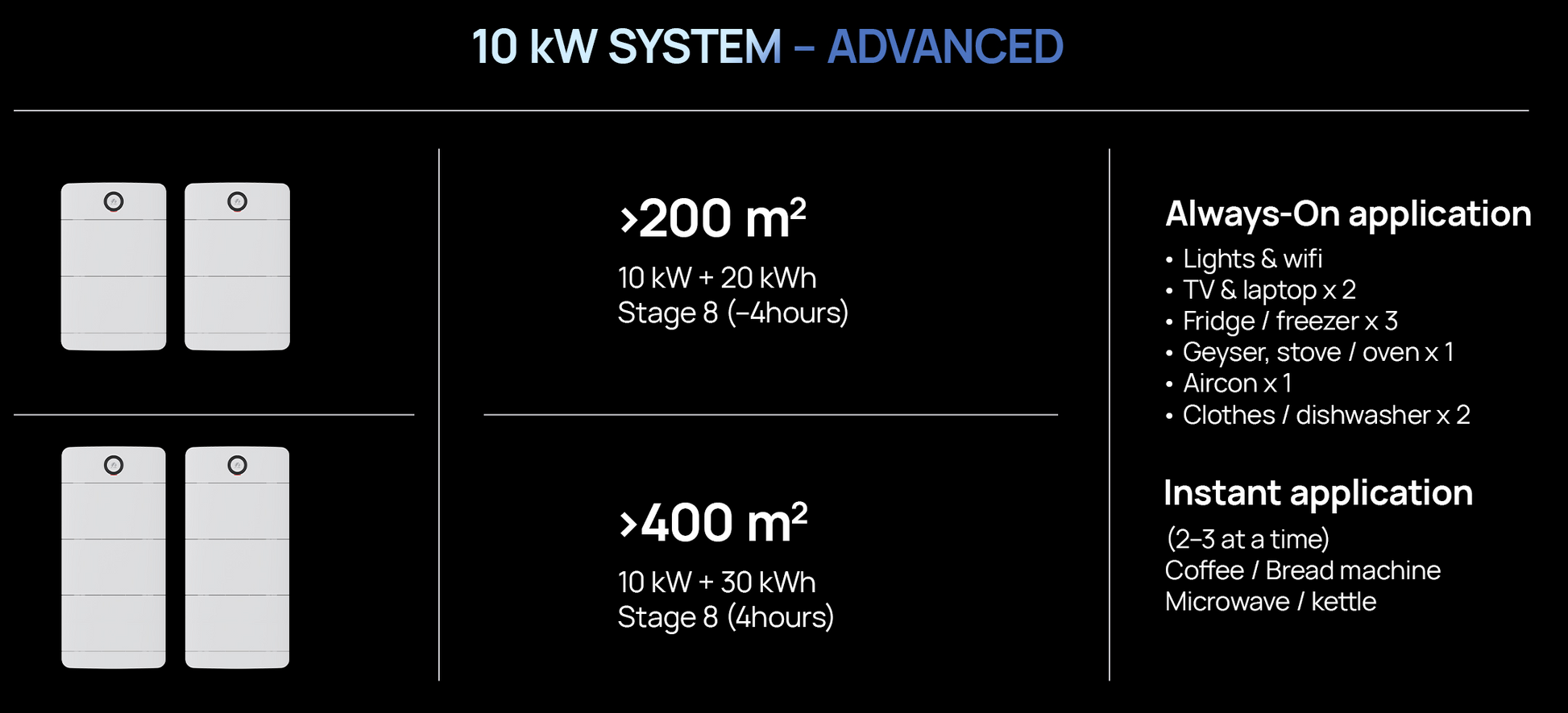

    • 10kW System (House): Aircons, TVs, Electric Fans, Refrigerators.

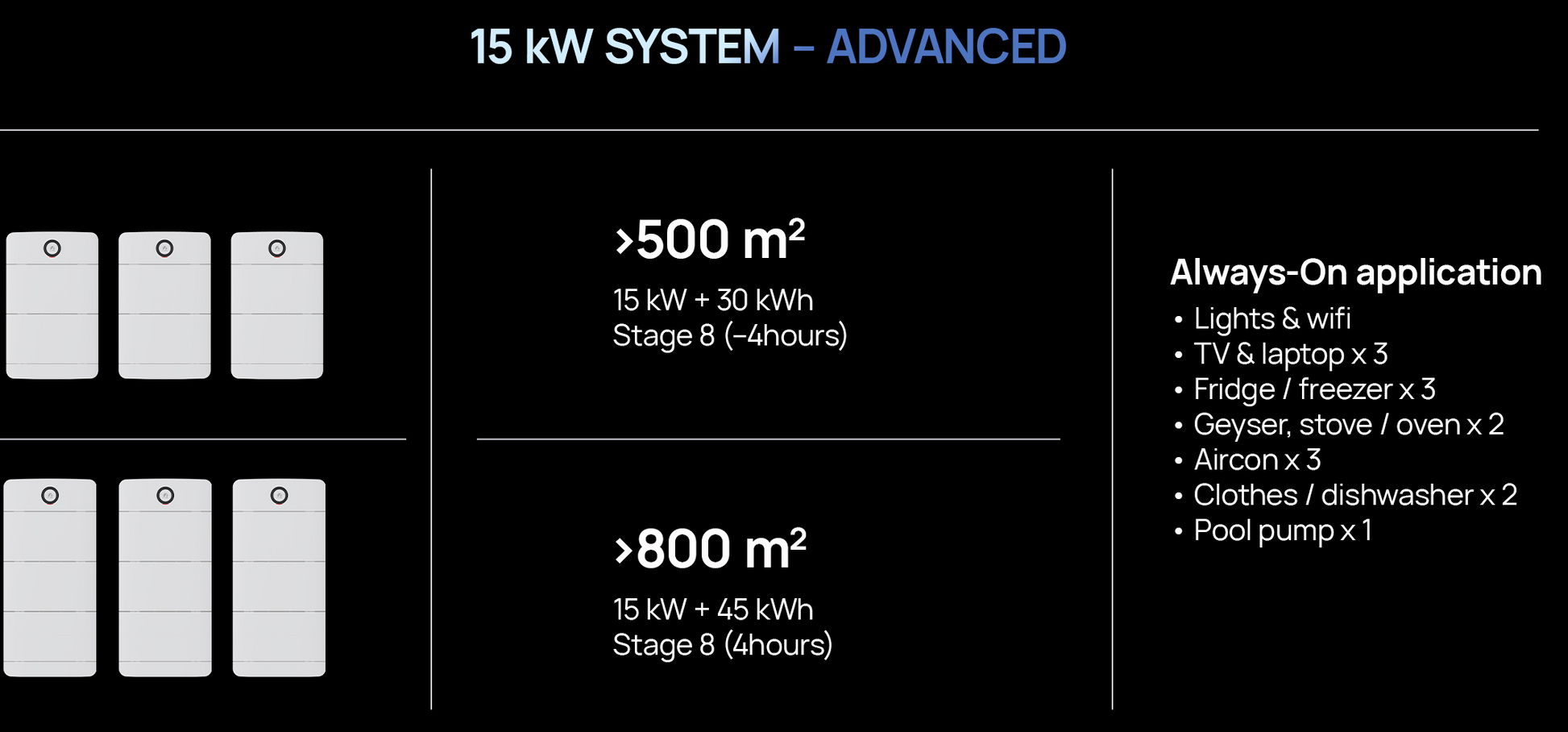

    • 15kW System (Office): Aircons, Computers, Printers, Projectors.
  • Weight: 50Kg
  • Refer To Brochure For Detailed Product Specifications.
  • 10 Year Limited Product Warranty or 6000 Cycles.
  • Ultra-fast: 2-hour fast charge 100%
  • Ultra-quiet: Fanless design, operating noise less than 29 dB Energy switchover without perception<10ms Smart priority management (Solar /battery /grid /DG) Smart mobile
  • APP management: monitor device running status in real-time, help EPC & client efficiently manage the device. D.G. scheduling is supported, D.G. does not need to be started manually.
  • Built-in energy optimizer, supporting mixed use of old and new lithium batteries
  • Indoor scenario, floor-mounted
  • Off-grid and unreliable grid areas, civil and commercial backup power
  • AC mode – Single-phase/dual-wire: 85 – 290 Vac
  • Input Power – Single-phase/dual-wire, 42A
  • Input voltage – 58-150 V DC
  • Input power – 8kW max
  • Output voltage – Single-phase 200–230 Vac
  • Battery capacity – 4.8kWh per battery
  • Charging Power – 4.8kW max.
  • Maximum parallel capacity – A maximum of three battery modules can be connected in parallel, 14.4 kWh.
